Why does sealing a sauna floor drain actually matter?

Heat cycles destroy ordinary sealing materials fast. A dry sauna runs between 150°F and 195°F (65°C to 90°C) at bench level, and the floor takes repeated splashing, steam condensation, and cool-down contraction every session ^[1]. That movement pushes moisture into any gap you leave open. Once water gets under the floor, you're looking at subfloor rot, mold in the framing, and a structural repair that costs far more than the drain ever did.

The EPA states the mechanism plainly: "The key to mold control is moisture control." Control it at the source or you get mold and rot in the assembly ^[12].

The drain hole is not the only failure point. The joint where the drain body meets the waterproof liner, and the grout lines radiating out from it, are where most leaks start. Plenty of DIY builders caulk the visible drain rim and call it finished. That is not enough.

One more thing worth knowing. A sauna floor drain sits dry for long stretches that a shower drain never sees. Those dry spells make plumber's putty shrink and crack. Silicone and purpose-built drain membranes handle wet-dry cycling much better.

What materials do you need to seal a sauna floor drain?

Short list: a clamping-ring floor drain (not a push-in type), a waterproof membrane or liner, 100% silicone rated for high heat and wet areas, epoxy grout, a notched trowel, and a utility knife. Here's why each choice matters.

Clamping-ring drain. This style has a two-part body. A lower receiver sits below the slab, and an upper clamping ring bolts down on top of the liner, sandwiching it into a mechanical watertight seal. Compression-fit and snap-in drains skip that clamping step and lean entirely on sealant, which fails under heat cycling.

Waterproof membrane. The tile trade uses sheet membranes (Schluter Kerdi, RedGard sheet, CPE liner) or liquid-applied membranes built for shower pans. The same products work in a sauna. For a true steam environment, a continuous CPE or PVC liner is the standard to beat. For a dry or moderately humid sauna, a liquid-applied membrane like RedGard in two coats is fine and much easier to retrofit ^[2].

100% silicone. Not latex. Not an acrylic-latex blend. Pure silicone stays flexible across the full temperature swing a sauna sees and does not absorb water. Look for "sanitary silicone" or "high-temperature silicone." GE Silicone I and Dow 786 are common trade-grade options.

Epoxy grout. Cementitious grout is porous. Epoxy grout is not. Within about 36 inches of the drain, epoxy grout is the right call. It costs more and fights you on the trowel, but it does not wick moisture ^[10]. Mapei Kerapoxy and Laticrete SpectraLOCK are two real products here.

Prices are approximate 2024 retail. Actual costs vary by region and supplier.

What type of drain body works best in a sauna floor?

A clamping-ring drain is the professional standard. The version that matters for a sauna has a body made of ABS plastic or stainless steel, not PVC. PVC can warp at sustained high temperatures near the drain opening, though it works fine in the supply piping below the slab where temperatures stay lower.

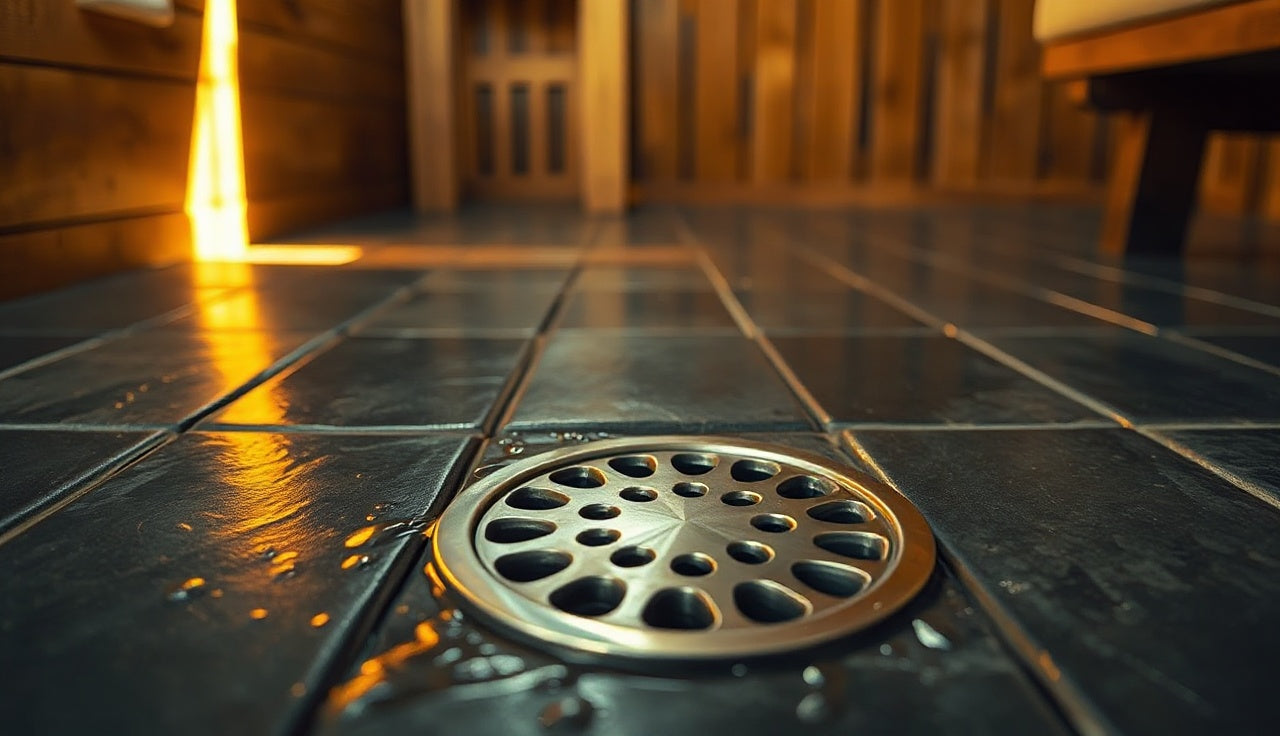

Stainless steel drain bodies with a clamping ring are the most durable option if you're tiling. They resist corrosion, they don't expand unevenly, and the ring bolts clamp a liner without cracking it. Oatey, Watts, and Zurn all make clamping-ring drains that work here.

A wood-floor sauna (tongue-and-groove cedar or teak over a sloped subfloor) works differently. You install a center drain or linear drain with a removable wood grate, and the waterproofing lives in the subfloor and liner beneath the wood, not in the wood itself. The wood is never the waterproofing layer. That distinction matters a lot.

For more background on sauna construction, the home sauna and outdoor sauna guides on this site cover floor framing options in detail.

How do you actually install and seal the drain, step by step?

This assumes a concrete slab or mortar-bed floor with tile. Adjust for your substrate, but the waterproofing logic holds.

Step 1: Rough-in the drain body. Set the lower drain body so the top flange sits flush with the finished mortar bed, accounting for the thickness of your membrane and tile. This is a plumbing rough-in step. If you're retrofitting into an existing slab, you may need a pro to core-drill and tie into the existing drain line.

Step 2: Slope the substrate. The floor must slope to the drain at a minimum of 1/4 inch per foot (about a 2% grade) ^[3]. This is not optional. Standing water in a sauna speeds up wood degradation and mold. Use a mortar bed or pre-sloped foam panels (Schluter Bekotec or similar) to set this slope before waterproofing.

Step 3: Apply the waterproof membrane. For a liquid membrane, brush or roll the first coat, let it cure per the manufacturer's schedule (usually 24 hours), then apply a second coat perpendicular to the first. Total dry film thickness should hit at least 30 mils for wet areas ^[2]. Embed fabric tape at all floor-to-wall corners and at the drain collar while the first coat is still wet. For a sheet membrane, cut the sheet to fit and adhere it with the right thin-set, overlapping seams by at least 2 inches.

Step 4: Seal the drain collar. This is the step most people rush, and it's the one that leaks. Cut the sheet membrane (or let the liquid membrane fully cure), then cut an X pattern centered on the drain opening. Fold the membrane flaps down into the drain body. Run a bead of 100% silicone around the drain flange, then bolt down the clamping ring over the folded membrane. The ring should compress the membrane against the flange evenly. Wipe away silicone squeeze-out before it cures.

Step 5: Flood test. Before tiling, plug the drain and fill the floor with 2 inches of water. Wait 24 hours. Check the ceiling below (if applicable) and the subfloor edges for moisture. This is the only honest way to know if your membrane is continuous.

Step 6: Tile and grout. Set tile in the appropriate thin-set (unmodified under sheet membranes, modified over fully cured liquid membranes, per the membrane maker's instructions). Use epoxy grout within 3 feet of the drain. Grout to the drain rim, then cut a clean joint between the grout and the rim and fill that joint with silicone, not grout. Grout cracks at hard transitions. Silicone flexes.

Step 7: Final silicone bead. Once everything is cured, run one clean bead of silicone around the top rim of the drain grate where it meets the tile. Smooth with a wet finger. Let it cure 24 hours before the first session.

What are the most common mistakes people make when sealing a sauna drain?

Using the wrong grout near the drain is probably the number one mistake. Cementitious grout is porous enough that water works through it over time, especially under steam pressure. Switching to epoxy grout at the drain field costs maybe $40 more and closes that failure mode entirely.

Not sloping the floor is close behind. A flat sauna floor collects water around the drain perimeter instead of funneling it in. That pooling speeds up liner degradation and defeats the whole point of a drain.

Using plumber's putty on the drain flange is a slow leak in the making. Putty is oil-based and not rated for sustained heat or the wet-dry cycling a sauna creates. It dries out, shrinks, and cracks. Use 100% silicone at the flange. Always.

Skipping the flood test. You can't see membrane failures by looking at them. A 24-hour flood test before tile goes down costs nothing but time and catches problems that would otherwise mean tearing up finished tile to fix.

Not embedding fabric tape at corners. A flat membrane coat over a 90-degree corner tends to bridge and crack. Fabric tape pressed into the wet first coat gives the corner flexibility and a continuous bond.

If you're building a portable sauna or thinking about whether a drain is even necessary for your setup, that's a different calculation, but the waterproofing logic for any wet floor still applies.

Do you need a floor drain in every type of sauna?

No. Traditional Finnish dry saunas, especially pre-built barrel saunas and cabin saunas with wood floors, often have no drain at all. The wood floor has gaps, water drips through to a gravel bed or vapor-open substrate, and air circulation dries it out between sessions. That works if the ventilation is adequate and you're not dousing the stones heavily.

The math changes with tile floors, steam rooms, or saunas that see heavy water use. A steam room has continuous moisture and needs a fully waterproofed floor with a proper drain, no exceptions. A sauna that doubles as a shower, or gets soaked repeatedly, needs one too.

The TCNA (Tile Council of North America) Handbook addresses steam room construction in Method SR613, which requires a sloped, continuous waterproof assembly with a clamping-ring drain ^[4]. That method is the professional benchmark even for a DIY install.

For a comparison of sauna and steam room moisture environments, the sauna vs steam room guide covers the differences in depth.

How do you waterproof the floor-to-wall transition near the drain?

The floor-to-wall corner is where most wet-area failures actually happen, not at the drain. Water gets behind tile at inside corners through the normal seasonal movement of framing and substrates.

The professional method builds a small cove of mortar at the corner (a fillet that rounds the transition), embeds fabric mesh tape into the first coat of liquid membrane while it's wet, then coats over it. The rounded cove stops the membrane from bridging a sharp angle.

For sheet membranes, the manufacturer supplies preformed corner pieces or has you cut and fold the sheet into the corner with a specified overlap. Schluter, for one, requires Kerdi-Band at all corners, bonded with unmodified thin-set, with a 2-inch overlap onto both surfaces ^[9].

The membrane must run up the wall at least 3 inches above the finished floor height (some codes require 6 inches). That vertical leg protects against splash and the occasional overflow. Where the membrane terminates on the wall, seal that top edge with silicone before tiling over it.

In a sauna where the walls are wood paneling rather than tile, you stop the floor waterproofing just before the paneling starts and use a backer rod plus silicone to seal that joint. Wood paneling is not a waterproof surface, but it doesn't need to be if the waterproofing plane is correct at floor level.

What building codes apply to sauna floor drains?

In the United States, sauna floor drains tie into the plumbing drain-waste-vent (DWV) system and must comply with your local version of the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC), whichever your jurisdiction adopted ^[5]. Most U.S. jurisdictions run some version of the IPC; a smaller number, mostly on the West Coast, follow the UPC ^[11].

The IPC requires floor drains to be trapped (a P-trap in the drain line), which keeps sewer gas out of the sauna. In a sauna used infrequently, trap primers or trap seals earn their keep, because the trap can dry out during long gaps between sessions and lose the water seal that blocks sewer gas ^[6].

Tile and waterproofing methods run under the building code's reference standards, which typically include ANSI A108 (installation of ceramic tile) and the TCNA Handbook ^[8]. TCNA Method SR613 is written for steam rooms, and many inspectors reference it for sauna floors as well ^[4].

Permit requirements vary. A new drain installation almost always requires a plumbing permit and a rough-in inspection. A waterproofing-only retrofit over an existing drain may or may not need a permit, depending on your municipality. Check before you start. Fines for unpermitted plumbing work are real and vary by jurisdiction.

If you're in California under the Title 24 energy code, there are no sauna-floor-drain provisions in Title 24 itself, but ventilation requirements for saunas and steam rooms show up in local health codes for commercial facilities ^[13].

How long does a properly sealed sauna floor drain last?

A clamping-ring drain with a CPE or PVC liner, installed over a sloped mortar bed with epoxy grout, should last 20 to 30 years with no maintenance beyond occasional cleaning. The weak link in most installations is not the liner but the silicone at the drain rim and corners, which needs inspection every 5 to 7 years and reapplication every 10 to 15 years.

Liquid-applied membranes like RedGard have a shorter service life under continuous steam. Manufacturer data supports at least 10 years in wet areas under normal conditions, though sauna-specific longevity data is limited ^[2]. The tile and grout over the membrane shield it from UV and physical wear, which is a big factor in how long it lasts.

Sheet membranes (Kerdi, NobleSeal) bonded properly to substrate and tile tend to perform like the CPE liner class, 20-plus years if the installation is solid.

The biggest accelerator of seal failure is repeated thermal shock, dumping cold water on a very hot tile floor. That rapid contraction stresses every joint. If you're doing contrast therapy and cooling the floor between sessions, know that it shortens the inspection interval. The cold plunge and ice bath guides cover contrast therapy setups if you're building a combined space.

How do you fix a sauna floor drain that's already leaking?

First, find where the leak comes from. It's almost never the drain grate itself. The failure is usually at the clamping ring (membrane pulled loose or silicone failed), at a grout joint near the drain, or at a wall-floor corner.

Remove the drain grate and clean the rim area. If you see cracked or missing silicone at the ring and the membrane underneath looks intact, that's a straightforward fix. Clean the surface with denatured alcohol, let it dry completely, and run a fresh bead of 100% silicone under and around the ring. Tighten the ring bolts evenly if you can reach them.

If the grout joints near the drain are cracked or hollow-sounding when tapped, remove the affected grout with an oscillating tool or grout saw, vacuum out all debris, and regrout with epoxy grout. Seal the joint between grout and drain rim with silicone, not grout.

If the membrane itself is compromised (water coming through the tile field, more than at joints), you have a bigger problem. A liquid membrane can sometimes be patched from above if the tile is removed in the affected area, but a failed CPE liner usually means tearing out the floor assembly to that layer. Be honest before you commit to a patch. If the subfloor shows rot or the liner is gone across a wide area, a full floor rebuild is the right call, not a surface patch.

SweatDecks carries sauna components and can point you toward the right materials for a rebuild if you're sourcing everything for a home sauna project.

Can you seal a sauna floor drain without tearing up the tile?

Sometimes. The ceiling-below leak test and a careful look at the visible drain area tell you a lot before you commit to demo.

If the leak is isolated to the drain rim, removing just the grate and resealing with silicone at the top of the clamping ring is a legitimate repair. Clean the area, cut away all old sealant with a utility knife, wipe with denatured alcohol, let it dry for 24 hours in a warm room, and apply fresh 100% silicone. Same-day fix.

If the grout is the problem, selective grout removal and an epoxy regrout works without full tile demo, as long as the membrane underneath is intact.

If the issue is the membrane itself, there's one partial option. Sheet-applied crack isolation and waterproofing membranes can be adhered directly over existing tile in some situations (Schluter Kerdi-Over is made for this). You lose floor height and you'd be retiling, but you don't have to remove the original tile. Whether that approach holds up depends on the substrate condition and what caused the original failure. An honest tile contractor can tell you in 20 minutes whether the substrate is solid enough for an overlay.

Frequently asked questions

What kind of sealant should I use around a sauna floor drain?

Use 100% silicone sealant, not latex or acrylic-latex blend. Pure silicone stays flexible through the high heat and wet-dry cycling a sauna creates. Apply it at the drain flange under the clamping ring, at the joint between tile and drain rim, and at floor-to-wall corners. Let it cure a full 24 hours before the first session.

Do I need a P-trap under my sauna floor drain?

Yes, in virtually all U.S. jurisdictions. The International Plumbing Code requires floor drains to be trapped to block sewer gas from entering the space. Because saunas sometimes go weeks without use, the trap can dry out. Install a trap primer or a trap-seal insert (like the Sure Seal) to maintain the water seal even during long dry periods.

What slope does a sauna floor need to drain properly?

A minimum of 1/4 inch per foot (roughly a 2% grade) toward the drain. That's the standard set by both the IPC and the TCNA for wet-area floors. A steeper slope (up to 3/8 inch per foot) is fine and drains faster. A flat floor pools water at the drain perimeter and defeats the purpose of having a drain.

Can I use regular caulk or plumber's putty to seal a sauna drain?

No. Plumber's putty is oil-based and dries out under sustained heat. Regular latex caulk lacks the temperature tolerance and flexibility for a sauna. Both will crack or shrink within a season or two. Only 100% silicone rated for wet, high-temperature areas holds a reliable seal through repeated heat cycling.

Do I need a waterproof membrane under the entire sauna floor or just around the drain?

The full floor needs a continuous waterproof membrane, more than the drain area. Water migrates laterally under tile and grout, so a drain-only membrane leaves the rest of the floor assembly exposed to moisture. TCNA Handbook Method SR613 specifies a continuous waterproof assembly across the entire floor for steam-level moisture environments.

What grout should I use near a sauna floor drain?

Epoxy grout within at least 36 inches of the drain. Cementitious grout is porous and wicks moisture over time, especially with repeated steam exposure. Epoxy grout (Mapei Kerapoxy, Laticrete SpectraLOCK) is non-porous and does not absorb water. It's harder to apply and costs more, but it's the right material for this location.

How do I test if my sauna floor drain seal is watertight before tiling?

Plug the drain with an inflatable test ball or rubber drain plug, fill the floor area with 2 inches of water, and wait 24 hours. Check the ceiling directly below and all subfloor edges for moisture. This flood test is the only reliable way to confirm membrane continuity before tile covers it. If water appears, find and fix the breach before tiling.

Is it possible to install a sauna floor drain after the sauna is already built?

Yes, but it's a significant job. Retrofitting means core-drilling through the existing slab or subfloor, running new drain piping to connect to the DWV system, rebuilding the floor with proper slope and membrane, and retiling. It typically requires a plumbing permit. In many cases the total cost of a retrofit rivals the cost of building the floor correctly from the start.

How do I prevent the sauna drain trap from drying out between uses?

Two options: a mechanical trap primer (a device tied into the supply plumbing that adds water to the trap periodically) or a passive trap seal insert like the Sure Seal, which uses a silicone flapper to block sewer gas even when the water seal is gone. The passive insert is simpler for a residential sauna and costs around $10 to $15 per drain.

Can I use a curbless sauna floor design with a linear drain instead of a center drain?

Yes. A linear drain at one wall with the whole floor sloped toward it works well and is common in modern sauna designs. The waterproofing approach is identical: continuous membrane, clamping-ring linear drain body, silicone at all joints. Linear drains are easier to slope toward (one direction instead of four) and simpler to clean. They cost more than standard center drains, typically $80 to $300 depending on length and finish.

Does the type of sauna (dry, wet, steam room) change how I seal the floor drain?

Yes, in degree. A dry Finnish sauna with modest water use can often use a liquid-applied membrane successfully. A steam room or a sauna with heavy water use needs a CPE or PVC liner, the same waterproofing class used for commercial wet areas. TCNA Method SR613 covers steam rooms specifically and is the benchmark for any continuous-moisture sauna.

How often should I inspect and maintain a sauna floor drain seal?

Check the silicone at the drain rim and wall-floor corners every 5 years. Look for cracking, separation, or discoloration. Replace any failed silicone immediately rather than patching over old sealant. The grout field near the drain deserves a tap test (a hollow sound means debonding) every 7 to 10 years. A full silicone replacement at all joints is reasonable every 10 to 15 years as a baseline.

What happens if I skip a floor drain in my sauna entirely?

For a dry sauna with a wood floor and adequate ventilation, skipping a drain is traditional and works if the floor can breathe and dry between sessions. For a tiled floor, a steam room, or any sauna with heavy water use, omitting a drain leads to standing water, mold, and eventual structural damage. A proper drain and waterproofing always costs less than remediation.

Sources

1. American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) – ASHRAE Handbook: HVAC Applications, sauna chapter: Traditional Finnish saunas operate at air temperatures between 150°F and 195°F (65°C to 90°C) at bench level
2. Mapei Corporation – RedGard Waterproofing and Crack Prevention Membrane product data sheet: RedGard liquid-applied membrane performance in wet areas including heat tolerance, minimum 30-mil dry film thickness, and at least 10-year effectiveness under normal wet-area conditions
3. Tile Council of North America (TCNA) – Handbook for Ceramic, Glass, and Stone Tile Installation: TCNA specifies a minimum 1/4 inch per foot (2% grade) slope to drain for wet-area floors; Method SR613 covers steam room waterproofing with clamping-ring drain assemblies
4. Tile Council of North America (TCNA) – Method SR613, Steam Room Installation: TCNA Method SR613 requires a continuous waterproof assembly and clamping-ring drain for steam room and high-moisture sauna floor installations
5. International Code Council – International Plumbing Code (IPC), 2021 edition: Sauna floor drains in the United States must comply with IPC or UPC requirements for drain-waste-vent systems depending on jurisdiction
6. International Code Council – International Plumbing Code (IPC) 2021, Chapter 10 (Traps, Interceptors and Separators): IPC requires floor drains to be equipped with traps to prevent sewer gas from entering occupied spaces; trap primers may be required for infrequently used drains
7. U.S. Centers for Disease Control and Prevention – Mold and dampness guidance: The CDC identifies persistent dampness and moisture in building materials as the primary driver of indoor mold growth and recommends prompt drying and moisture control
8. American National Standards Institute – ANSI A108 Series (Installation of Ceramic Tile): ANSI A108 governs tile installation methods referenced in U.S. building codes, including substrate preparation and waterproofing for wet areas
9. Schluter Systems – Kerdi Waterproofing Membrane Installation Guide: Schluter Kerdi requires Kerdi-Band at all inside corners with 2-inch overlap onto both surfaces, bonded with unmodified thin-set; sheet membrane temperature tolerance up to 140°F continuous
10. Laticrete International – SpectraLOCK Epoxy Grout Technical Data Sheet: Epoxy grout (SpectraLOCK) is non-porous and does not absorb water, making it appropriate for wet-area floors near drains
11. International Association of Plumbing and Mechanical Officials (IAPMO) – Uniform Plumbing Code (UPC), 2021 edition: Western U.S. jurisdictions use the UPC rather than the IPC; both require trapped floor drains and connection to the DWV system
12. U.S. Environmental Protection Agency – Mold and moisture guidance ("A Brief Guide to Mold, Moisture and Your Home"): The EPA states "The key to mold control is moisture control"; moisture intrusion into building assemblies causes mold growth and structural degradation, and controlling moisture at the source is the primary prevention strategy
13. California Building Standards Commission – California Code of Regulations, Title 24 (California Building Standards Code): Title 24 contains no sauna-floor-drain provisions; ventilation and moisture requirements for saunas and steam rooms appear in local health and building code references for commercial facilities
