Short answer: choose a steam-room tile design from the assembly outward. First confirm residential intermittent or continuous-use duty, liquid-water and vapor control, slopes, drain, penetrations, movement joints, setting materials, and cleaning plan. Then select tile by surface: documented wet-floor suitability below, maintainable wall and ceiling formats above, and compatible details at benches, niches, glass, and the steam head.
A beautiful sample board can still produce a poor room if the floor is difficult to drain, the ceiling layout fights its slope, the glass backing is incompatible, or the stone cannot tolerate the cleaning program. The most durable design is one that the tile, setting-material, membrane, drain, and room-system manufacturers can support in writing.
Reviewed August 1, 2026. This is a design and specification framework, not a substitute for the selected installation method, product data, approved drawings, or qualified installer.
Quick answers
What is the best tile for a steam room?
There is no single best tile for every surface and assembly. Porcelain is a common starting point because many products publish low water absorption and wet-area applications, but the exact tile, finish, size, backing, mortar, grout, movement joints, membrane, and use class must be approved as one system.
Can natural stone be used in a steam shower?
Sometimes. Identify the exact stone and finish, confirm the assembly and setting-material approvals, test appearance and cleaning, understand sealing limits, and obtain a written care plan. Stone composition varies, and some products are sensitive to acidic cleaners or persistent moisture.
Can glass tile be used in a steam room?
Only when the glass-tile manufacturer approves the exact steam application and specifies compatible substrate, membrane, mortar, grout, joint, backing, and cure requirements. Mesh, paper, resin, paint, and foil backings require special review.
Are mosaics good for a steam-room floor?
Mosaics can follow compound slopes and create more grout-joint texture, but suitability depends on the exact product and installation. Verify published shower-floor use, wet DCOF where applicable, sheet mounting, mortar contact, grout, drainage, cleaning, and barefoot comfort.
Can large-format tile be used in a steam shower?
It can create fewer grout joints and a calm visual field, but it demands substrate flatness, full compatible mortar coverage, controlled lippage, planned cuts, movement accommodation, and a floor or ceiling geometry that the format can actually follow.
Does tile make a steam room waterproof?
No. Tile and grout are finish layers. The specified assembly behind them must manage both liquid water and vapor across the floor, walls, ceiling, seams, penetrations, drain, curb, door, and transitions.
Start with six decisions before color
- Use class: document whether the enclosure is an intermittent residential steam shower or a continuous-use room.
- Complete assembly: select the backing, vapor and waterproofing system, drain connection, mortar, grout, sealant, and movement-joint strategy.
- Geometry: resolve floor and ceiling slopes, bench faces, niches, curbs, thresholds, corners, and penetrations before choosing format.
- Surface role: separate floor, wall, ceiling, seat, edge, and accent requirements instead of specifying one tile everywhere.
- Maintenance: test the proposed cleaner, water deposits, grout color, texture, and stone or glass sensitivity on actual samples.
- Lot and layout: approve shade variation, blend, joint width, cuts, focal lines, and spare material before installation.
Schluter's current guidance explains that water exists in both liquid and vapor forms and distinguishes residential intermittent-use assemblies from continuous-use steam rooms. LATICRETE's technical manual similarly treats tile as one component within structure, insulation, vapor control, waterproofing, slopes, movement, and setting materials.
Material comparison by decision, not ranking
| Material | Why designers choose it | What to verify | Maintenance question |
|---|---|---|---|
| Porcelain | Wide format, finish, color, stone-look, and wood-look range with many low-absorption products. | Exact steam and surface application, wet-floor data, edge, thickness, warpage, mortar, coverage, grout, and lot. | Will texture, grout color, and finish show mineral deposits or cleaning film? |
| Ceramic | Broad color and shape options, especially for walls. | Do not assume every ceramic is nonporous or floor-rated. Check body, glaze, absorption, application, and installation data. | Can the glaze and joints tolerate the approved cleaning plan? |
| Glass | Reflective color, depth, mosaic scale, and feature surfaces. | Steam approval, backing, sheet mounting, mortar color, thermal movement, substrate, grout, cuts, and cure. | Will water spots, soap film, scratches, and backing visibility suit the owner? |
| Natural stone | Unique variation, depth, and tactile character. | Exact geology, finish, absorption, sensitivity, steam approval, staining, setting system, sealer expectations, and sample panel. | Which neutral cleaner, sealing plan, stain response, and restoration path are documented? |
Natural stone is not one material. The Natural Stone Institute advises identifying its geological composition because calcareous and siliceous stones respond differently to cleaners. A sealer does not turn unsuitable stone into maintenance-free porcelain.
Match tile format to each surface
| Surface | Useful format direction | Detail to solve first |
|---|---|---|
| Floor | Mosaic or a documented floor format that follows the chosen point or linear-drain geometry. | Wet use, slope, lippage, grout texture, drain cuts, cleaning, and barefoot comfort. |
| Walls | Large field tile, stacked rectangular tile, vertical kit-kat, or mosaic feature with deliberate joint alignment. | Flatness, penetrations, niches, glass edges, layout centers, and full compatible coverage. |
| Ceiling | A size and weight the specified ceiling assembly and geometry can support. | Slope, headroom, bond, penetrations, movement, cut plan, and overhead installation requirements. |
| Bench and curb | Formats that resolve edges, drainage, seat slope, and comfortable contact without fragile slivers. | Edge profile, temperature, joint placement, slope, glass hardware, and cleanability. |
| Niche | A coordinated mosaic or field-tile continuation with planned returns. | Shelf slope, waterproof corners, product residue, cuts, and steam-head separation. |
The steam-room ceiling guide compares current assembly guidance instead of imposing one universal slope.
Six steam-room tile design directions
1. Quiet stone-look porcelain
Use one low-variation stone-look porcelain on walls, then shift to a smaller coordinating floor format. Align major joints with the bench, niche, door head, and glass. This creates a calm room while preserving floor geometry and wet-area selection.
2. Dark envelope with deliberate lighting
Charcoal, deep green, brown, or near-black tile can make vapor visible and create visual depth. Mock up the exact finish under the actual wet-rated lighting. Dark surfaces may reveal mineral residue, soap film, and uneven cleaning more quickly, so approve the maintenance result before committing.
3. Pale field with one mosaic plane
Keep most walls quiet and use a compatible glass, porcelain, or ceramic mosaic on one wall, niche, or bench face. Limit the accent to a surface where the sheet backing, cuts, steam exposure, and cleaning can be documented. More grout creates more visual texture and more joints to maintain.
4. Vertical rectangular rhythm
A vertical stack can emphasize height without complicated offsets. Establish a full-room elevation so grout lines meet corners, controls, steam head, valves, niche, bench, and door intentionally. Do not let the pattern force small cuts at hot or highly visible components.

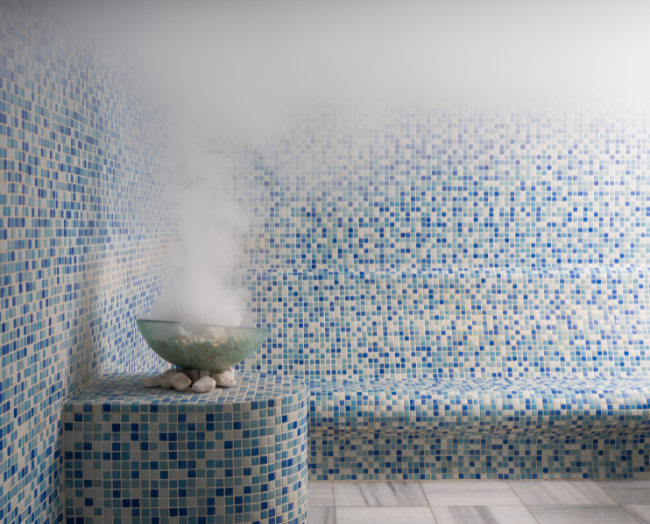

5. Curved mosaic room
Small mosaics can follow rounded benches, vaulted transitions, and compound surfaces that large tile cannot. Verify sheet flexibility, face mounting or mesh, adhesive coverage, alignment, grout, and cleaning. A curve should be formed by the substrate, not improvised with uneven mortar thickness.
6. High-contrast wayfinding details
Use deliberate contrast to help users locate the bench edge, threshold, controls, and door hardware through steam. Confirm that visual cues remain visible when surfaces are wet and lighting is dimmed. This is a design aid, not a substitute for required accessibility, lighting, or slip evaluation.
Floor tile needs more than a “slip-resistant” label
Daltile explains that wet DCOF is a controlled comparison measure and that a value cannot predict whether a slip will occur. Tile size, grout, slope, drainage, contaminants, cleaning, footwear, and user behavior also matter. Require the exact product's published application table rather than relying on a collection name or a loose sample.
- Confirm the product is documented for the intended residential or commercial shower floor.
- Review current wet DCOF data where the measurement applies.
- Coordinate tile size with point-drain or linear-drain slopes.
- Reject lippage, sharp cuts, unstable grates, ponding, and grout depressions during inspection.
- Test the installed cleaning method because residue can change footing.
Grout, sealant, and movement joints are design elements
Grout color changes how a pattern reads and how deposits appear, but grout selection begins with compatibility and performance. Confirm joint-width limits, cure, chemical resistance, cleaning, color variation, and whether the product is approved in the selected steam assembly.
Sealant and movement joints cannot be grouted over for a seamless look. Structure, thermal change, moisture, and dissimilar materials move. The approved drawings should locate movement accommodation at perimeters, changes of plane, fields, penetrations, glass, and transitions as the system requires.
Build a sample board that answers real questions
- Use production-lot tile, not only a showroom chip.
- Include the actual grout color and joint width.
- Include the selected edge profile, sealant, and adjacent hardware finish.
- Wet the board and view it under the specified lighting.
- Apply the approved cleaner and local water, then let it dry.
- For stone or glass, include the exact backing, mortar color, sealer if any, and finish.
- Approve expected variation, water spotting, film, texture, and cleanability in writing.
Coordinate tile before generator sizing is final
Finish material can affect a manufacturer's generator-sizing method. Record the final walls, ceiling, glass, exterior exposure, and dimensions before selecting equipment. Use the steam-generator sizing guide to compare current brand methods.
Also coordinate the door and glass assembly, steam-head and control cuts, lighting, and every penetration before tile installation. Late drilling can compromise the finish and concealed vapor assembly.
Maintenance should influence the palette
Glossy dark glass can show water spots. Highly textured floors can hold residue. Light grout can display soil, while very dark grout can show mineral deposits. Natural stone may restrict cleaner chemistry. None of those choices is automatically wrong, but the owner should see a cleaned and dried mockup first.
The steam-room cleaning guide organizes care by tile, stone, grout, glass, sealant, metal, acrylic, and panel surfaces. Provide spare tile, grout identification, sealant identification, cleaner list, water-care notes, and installer contact at handoff.
Tile specification checklist
- Use class and complete assembly drawing.
- Tile manufacturer, series, color, size, finish, edge, thickness, lot, and shade variation.
- Approved surface application for floor, wall, ceiling, bench, niche, and curb.
- Wet-floor data and limitations where applicable.
- Backing and mounting method for mosaics and glass.
- Substrate flatness, slope, mortar, coverage, cure, grout, sealant, and movement joints.
- Layout elevations, drain cuts, edge profiles, penetrations, and spare quantity.
- Cleaning, sealing, inspection, repair, and replacement instructions.
For the complete construction sequence, use the home steam-room build guide. For an existing shower, begin with the conversion feasibility guide before selecting finishes.
Sources
- LATICRETE. Tiled steam room and steam shower technical design manual.
- LATICRETE. Steam-room and glass-tile setting-material guidance.
- Schluter. Residential steam showers.
- Schluter. Essential water and vapor management in tiled showers.
- Daltile. DCOF slip-resistance testing and interpretation.
- Natural Stone Institute. Care and cleaning of natural stone.
