Is your existing shower actually a good candidate for a steam room?

Most tile-and-mortar showers can become working steam rooms. But a few things disqualify a space fast, and you want to check them before you spend a dollar.

Start with size. Steam generators are rated in kilowatts, and that rating gets matched to the cubic footage of the room. A standard 3x4 foot stall has 36 square feet of floor, and at an 8 foot ceiling that's 288 cubic feet. That sits right at the low end of what most residential steam packages target. Anything under about 250 cubic feet is easier to heat and easier to seal. Anything over 700 cubic feet starts costing real money in generator size and monthly energy.

Next, ceiling height and shape. A steam room needs a sloped or angled ceiling so condensation drains toward the walls instead of raining on your head. A dead-flat ceiling at 8 feet or higher is a problem. You can add a false sloped panel as a retrofit, but that eats headroom. If your existing shower ceiling is already vaulted or angled, count yourself lucky.

Then the enclosure. A shower with a solid glass or tile surround on three sides and a glass door is halfway to being a steam room already. Open-top showers, showers with ventilation gaps, and walk-in showers without a door are bad candidates. Steam is pressurized humid air. Any gap bleeds it away and wrecks your generator's efficiency.

Last, your electrical panel. Steam generators run on dedicated 240V circuits. A 9 kW unit draws about 37.5 amps at 240V, and your panel needs room for that load. If the panel is already near capacity, the electrical upgrade alone can add $500 to $1,500 to the job ^[1].

What size steam generator do you need for a shower conversion?

Sizing the generator is the one decision that most affects how well the room works. Too small and it takes forever to steam up, or never fully saturates. Too big and you overpaid for both the equipment and the electricity.

The industry formula is simple. Calculate the cubic footage of your shower (length x width x height in feet), then apply a multiplier for wall material. Tile and acrylic multiply by 1.0. Natural stone like granite or marble multiplies by 1.25 because those materials soak up heat. Glass walls multiply by 1.5 because glass sheds heat to the room behind it.

Room cubic footage	Recommended generator size
Under 100 cu ft	5 to 6 kW
100 to 200 cu ft	7 to 9 kW
200 to 350 cu ft	9 to 11 kW
350 to 500 cu ft	12 to 15 kW
500 to 700 cu ft	16 to 18 kW

For a typical converted 3x4x8 shower (96 cubic feet), a 6 to 7 kW unit usually handles a tiled room, and a 9 kW unit covers one with glass walls or stone surfaces.

Most home generators draw between 6 kW and 18 kW. At the U.S. average residential rate of about $0.16 per kWh in 2024 ^[2], a 9 kW generator running 20 minutes costs roughly $0.48 a session. Daily use lands under $15 a month. That is a small operating cost.

One honest caveat. The cubic footage formula assumes a well-sealed room at roughly 65 to 70 degrees F ambient. If your shower sits on an exterior wall in a cold climate, the generator fights heat loss through that wall. Bump up one size tier in that case.

What waterproofing and enclosure work does a shower steam room require?

This is where most DIY conversions fall apart. A regular shower deals with intermittent water from above. A steam room holds humid 110 to 120 degree F air for the whole session, and that steam finds every gap in grout, around pipes, under the door, and at ceiling seams.

The International Residential Code (IRC), Section R307, addresses moisture control at shower enclosures, and many local codes specifically require vapor-resistant membranes behind tile in steam applications ^[3]. Beyond code, here is what actually has to happen.

Ceiling. It must slope at least 1 to 2 inches of fall per linear foot so condensation runs to the wall instead of dripping. A flat existing ceiling needs a retrofit sloped panel or a small framed false ceiling. The surface has to be fully tiled or covered in a non-porous material. Painted drywall, even the moisture-resistant kind, does not belong here.

Walls. Tiled floor to ceiling puts you in good shape. Any exposed drywall, and even cement board without a membrane, needs attention. Best practice is a continuous waterproof membrane (Schluter KERDI or a liquid-applied product like RedGard) under the tile, running from the floor up the wall and a few inches onto the ceiling plane.

Door seal. People skip this and regret it. Standard shower doors leave small gaps at the top and sides. A steam room wants a door that seals tight, ideally a frameless glass door with a quality bottom sweep and compression seals on the sides. A small threshold ramp keeps the door bottom from bleeding steam.

Floor drain. Your existing drain is fine. Steam rooms still need one because condensation pools on the floor. What you want to avoid is a drain tied to a sewer line without a P-trap, since sewer gas can back-feed into the room. Standard shower drains already have P-traps, so this usually takes care of itself.

Penetrations. Any pipe or wire entering the enclosure needs a full seal with silicone or a proper escutcheon plate. A small gap around a steam head pipe will feed moisture into the wall cavity over months.

Steam generator (6 to 13 kW)	$2,100
Electrical circuit + labor	$1,150
Plumbing supply + drain	$500
Ceiling/wall tile work	$750
Door seal upgrade	$400
Permits	$250
Misc (membranes, sealants)	$200

Source: NAHB Cost Data and BLS Occupational Wage Statistics, 2024

Where does the steam generator go and how is it plumbed?

The generator does not sit inside the shower. It goes in an accessible spot nearby: a vanity cabinet, a closet on the far side of the wall, or under a bench in a larger build. Most manufacturers want the generator within 25 to 40 feet of the steam head and reachable for maintenance.

The unit connects to two things: a cold water supply line and a 240V circuit. Water fills a reservoir inside the unit, which heats to make steam. The steam leaves through a copper or stainless line that runs through the wall to the steam head inside the shower.

A few placement details decide whether this works.

The generator should sit level, somewhere its drain line can reach a waste line. Every unit needs descaling on a schedule (usually every 3 to 6 months, depending on water hardness), and it drains that flush water somewhere.

The steam line between the generator and the head must slope continuously back toward the generator, never toward the room. If any section sags, condensate pools there and you get spitting water instead of dry steam.

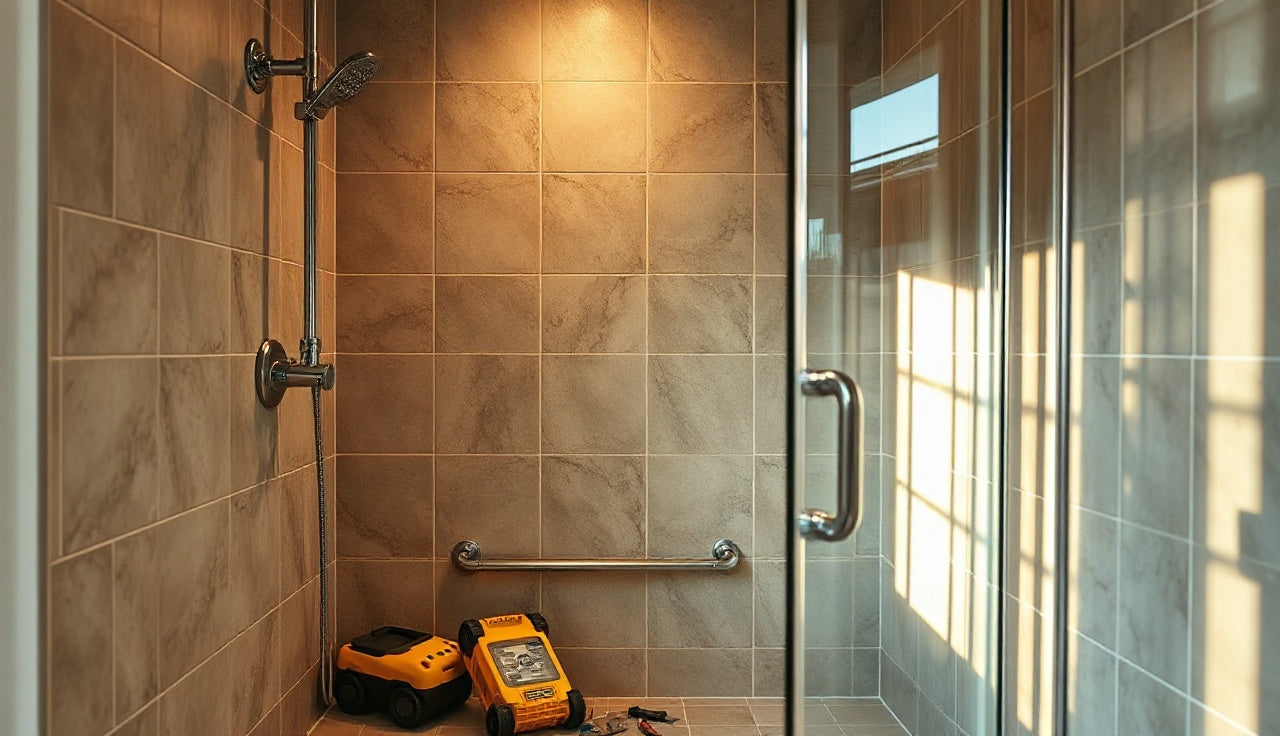

The steam head belongs low in the shower, 6 to 12 inches off the floor, on the wall opposite where you sit, aimed away from skin. Steam rises, so a low head fills the room from the bottom up. A head at chest or face height blasts hot steam straight at you. That is uncomfortable and it can scald.

A licensed plumber usually handles the connection, because you are teeing off an existing supply line and adding a drain tie-in. Plumbing labor runs $50 to $150 an hour depending on your market ^[4].

What electrical work is required for a shower steam room?

Every residential steam generator needs its own dedicated 240V circuit. This is not optional under code or from a safety standpoint. The circuit shares nothing with any other appliance.

Breaker size follows the generator's amperage draw. A 9 kW unit at 240V pulls 37.5 amps, which typically calls for a 40-amp double-pole breaker and 8-gauge wire. A 13 kW unit pulls about 54 amps and needs a 60-amp breaker with 6-gauge wire. Confirm against the manufacturer's spec sheet and your local code, because requirements vary.

The National Electrical Code (NEC) Article 680 covers pools and spas, and many local authorities apply its bonding and GFCI rules to steam rooms because water and electricity sit close together ^[5]. Your inspector will want GFCI protection on any receptacle inside or near the enclosure, and the generator's metal housing bonded to ground.

Hire a licensed electrician for this. Running a new 240V circuit from your panel, including breaker, wire, and any conduit local code requires, typically costs $300 to $800 in materials and another $400 to $800 in labor, based on how far the panel sits from the bathroom ^[1].

The control panel, the thermostat and timer unit you mount outside the room, connects to the generator with low-voltage control wiring. That part is usually simple to run yourself once the main circuit is in. Most current generators use a digital control that sets temperature, session length, and a start time so the room is ready when you walk in.

What materials work in a steam room and which ones fail?

Material choice carries more weight in a steam room than in a regular shower, because the heat and humidity stay high the whole session instead of coming and going.

Ceramic and porcelain tile are the safe, standard pick. Both are non-porous, take heat well, and last indefinitely under steam. Grout lines still want a penetrating sealer once a year.

Natural stone (marble, granite, travertine) works but demands more generator power (that 1.25 multiplier from earlier) because stone absorbs heat. Seal all stone before the room ever runs, then reseal every 6 to 12 months. Travertine is porous enough that skipping this leads straight to mold and mineral staining.

Glass tile is good on walls, but the grout joints have to be installed and sealed carefully. Large-format glass panels look great and stay non-porous, though they run expensive and need a professional installer.

Acrylic and fiberglass surround panels can usually take steam, but check the temperature rating. Some acrylic products top out at 100 degrees F, and steam rooms hit 110 to 118 degrees F up at ceiling level. If your existing fiberglass surround has no clear high-temperature rating, tile over it or replace it.

Wood does not belong inside the enclosure. It warps, molds, and breaks down under sustained humidity. The one exception is bench slats in teak or cedar made specifically for sauna and steam use, which have tight grain and natural oils that shrug off moisture. Even those want annual oiling and the occasional sanding.

Cement board is fine as a substrate behind tile, but only with a continuous waterproof membrane over it. Cement board alone is not waterproof. It just does not swell and fall apart the way regular drywall does when it gets soaked.

Paint has no place on a steam room ceiling or wall. Every surface has to be tile, stone, or a sealed non-porous panel.

How do you ventilate a shower steam room properly?

Here is the part that surprises people: you do not want strong ventilation running during a session. The whole point is to hold hot humid air in the room. Your existing bathroom exhaust fan, if it shares a switch with the shower light, will pull the steam out before it ever builds.

Most steam room builders take the same approach.

Put the bathroom exhaust fan on its own switch, separate from everything else. During a session the fan stays off. After the session, run it 20 to 30 minutes to clear humidity.

The enclosure itself gets no exhaust vent. The door is the only controlled opening.

When you finish, prop the door open and run the fan. The interior should dry out within 30 to 60 minutes in most climates. If it takes longer, you have a sealing or ventilation problem somewhere in the bathroom.

The International Mechanical Code (IMC) Section 504 covers exhaust requirements and sets minimum exhaust rates for residential bathroom moisture control ^[6]. A steam room bathroom usually needs a fan rated for at least 50 to 110 CFM depending on room size. The fan has to vent to the exterior, never into an attic or crawlspace.

One thing nobody warns you about: in a very humid climate (the coastal Southeast, the Pacific Northwest), drying out after sessions takes longer and mold risk climbs. In those regions, a small dehumidifier run between sessions keeps long-term moisture damage off your back.

How long does it take to convert a shower to a steam room?

A clean conversion, where the tile is already done and you are just adding the generator, plumbing, and electrical, takes about 2 to 5 days of actual work. Spread that over 1 to 2 weeks once you account for inspection scheduling and contractor availability.

Here is a rough timeline.

Day 1: Rough-in electrical. The electrician runs the 240V circuit, installs the breaker, and the generator location gets set.

Day 2: Rough-in plumbing. The plumber tees off the water supply, runs the feed line to the generator, and confirms the drain connection.

Day 2 to 3: Tile or ceiling work. If the ceiling needs sloping or the walls need membrane repairs, it happens now and has to dry before you seal the room.

Day 3 to 4: Generator install, steam line routing, steam head install. The steam line runs from the generator through the wall to the head. This is the heaviest mechanical step.

Day 4 to 5: Controls, final electrical connections, door seal upgrades.

Day 5 and beyond: Inspections. Your building department may want a rough-in inspection before the walls close and a final inspection after everything connects. That scheduling can add a week on its own.

If you are also tiling from scratch, because the existing shower was not fully tiled, add another 3 to 5 days for the tile plus cure time. Thin-set and grout need 24 to 72 hours before steam exposure ^[7].

How much does a shower steam room conversion cost?

Cost swings on generator quality, how much work the existing shower needs, and whether you manage the project yourself or hand it to a general contractor.

Here is an honest breakdown.

Cost item	DIY-managed range	Contractor-managed range
Steam generator (6 to 13 kW)	$700 to $3,500	$700 to $3,500 (same unit)
Electrical (circuit + labor)	$700 to $1,600	$900 to $2,000
Plumbing (supply + drain)	$300 to $700	$500 to $1,200
Ceiling/wall tile work	$0 to $1,500	$800 to $3,000
Door seal upgrade	$200 to $600	$300 to $800
Permits	$100 to $400	$100 to $400
Misc (membranes, sealants, fittings)	$100 to $300	$150 to $400
Total estimate	$2,100 to $8,600	$3,450 to $11,300

The generator is the biggest single variable. Entry-level 6 kW units from Mr. Steam and Steamist start around $700 to $900. Their mid-range whole-home models with digital controls and aromatherapy injectors run $2,500 to $3,500. ThermaSol and Kohler's higher-end systems with integrated controls can top $5,000 for the generator alone.

If your shower is already tiled floor to ceiling, has a solid glass door, and your panel has capacity, the scope shrinks and you can reasonably land at $2,000 to $4,000 total.

For comparison, a standalone prefab steam room starts around $3,000 to $5,000 installed, but it eats floor space and does not tie into your existing plumbing. Converting the shower you already have is usually the better value when the enclosure is compatible.

SweatDecks carries steam-compatible accessories and recovery gear if you want to pair a new steam room with a cold plunge or compare setups in our sauna vs steam room guide.

Do you need permits to add a steam generator to a shower?

Yes, in almost every U.S. jurisdiction. A steam generator conversion touches three permit categories: electrical, plumbing, and sometimes mechanical. All three usually require permits and inspections.

The electrical permit covers the new 240V circuit. The plumbing permit covers the water supply tie-in and drain connection. If you also modify the bathroom exhaust fan or add any HVAC component, a mechanical permit applies.

Permit costs vary by municipality but usually total $100 to $400 across all three ^[8]. Some cities issue one combined permit for bathroom remodels.

Skipping permits on a steam generator is a bad call for three reasons.

1. Insurance. If a steam-related water leak or electrical fault causes damage, your homeowner's insurance will investigate the claim. Unpermitted work is grounds for denial under many policies.

2. Sale. An unpermitted steam generator flags in a home inspection and can delay or blow up a sale.

3. Safety. The inspections exist because water and electricity together carry genuine hazard potential.

Plenty of homeowners have installed steam generators without pulling permits and had no trouble. That happens. It is also a real risk, and it deserves an honest naming rather than a shrug.

What are the health effects of steam room use compared to a dry sauna?

Steam rooms run at 100 to 114 degrees F with near 100% relative humidity. Traditional dry saunas run at 150 to 195 degrees F with 5 to 20% humidity ^[12]. The two feel nothing alike, even though both produce sweating and a higher heart rate.

The evidence on cardiovascular and respiratory benefits specific to steam bathing is thinner than the evidence on dry sauna. The best-cited sauna research, like the 2018 Mayo Clinic Proceedings review that tied frequent sauna use to lower cardiovascular mortality in a Finnish cohort, looked at dry Finnish saunas ^[9]. Steam room studies tend to be smaller and focused on respiratory symptoms.

Here is what the evidence does support.

A 2013 study in the International Journal of Sports Medicine reported that steam sessions raised perceived recovery and lowered muscle soreness markers in athletes, though the sample sizes were small ^[10].

The high humidity may help people with sinus congestion or mild upper respiratory symptoms breathe easier during a session, but that is physiological inference more than strong clinical proof. The CDC does not list steam inhalation as a proven treatment for any specific condition ^[11].

For most healthy adults, a 15 to 20 minute session is well tolerated. Anyone with a cardiovascular condition, who is pregnant, or who is heat-sensitive should talk to a physician before regular use. A steam room, like a dry sauna, puts real cardiovascular stress on the body through heat.

Want the full comparison? Our sauna benefits article covers the dry sauna evidence in detail, and sauna vs steam room breaks down which format fits which goal.

What are the most common mistakes people make when converting a shower to a steam room?

Undersizing the generator tops the list, and it is expensive to fix after the fact because generators are hard to return or swap once they are plumbed in. People eyeball their 4x5 shower, run a quick number, and buy a 6 kW unit without counting the glass walls, the exterior wall heat loss, or the high ceiling. The room never quite saturates. If you sit on the boundary between two tiers, size up.

Forgetting the sloped ceiling is the second big one. People install a perfect generator and perfect tile, then wonder why condensation drips on their head the whole session. A retrofit slope goes in with a simple pressure-treated frame and cement board, but it is far easier to do before the tile than after.

Using the wrong door is third. A shower curtain is obviously out. Even many glass doors with standard gaskets leak too much steam. A leaky door costs you maybe 20 to 30% of your steam before the room reaches temperature. A frameless glass door with real compression seals earns the upgrade.

Mounting the steam head too high is fourth. Steam rises on its own, so a head at chest height sends it up and over you instead of filling the room from below. Low placement, 6 to 12 inches off the floor, is what most generator manufacturers call for.

Skipping the ceiling membrane is fifth, and it is a slow-motion disaster. Tile the ceiling but skip the membrane underneath, and over months and years moisture works into the ceiling assembly, rots framing, and grows mold you will not see until it is a major remediation job.

Ignoring water hardness is the last one. Generators heat water in a reservoir, and scale builds faster than in a water heater because the temperature runs higher. In hard water markets (much of the Southwest and Midwest), descaling can come as often as every 2 to 3 months instead of the 6-month default. A small inline softener, or a quarterly citric acid descale, adds real years to the generator.

Frequently asked questions

Can any shower be converted to a steam room?

Most fully tiled showers with solid glass enclosures convert well. Showers with open tops, ventilation gaps, or no door are poor candidates because steam escapes before the room saturates. Fiberglass surround showers may work if the manufacturer's temperature rating clears 110 degrees F. The minimum practical size is roughly 250 cubic feet. Smaller spaces can work, but generators sized for them are limited in selection.

How long does a steam room take to heat up?

A properly sized generator brings a well-sealed 250 to 300 cubic foot shower to steam temperature in 10 to 15 minutes. An undersized generator or a leaky enclosure can take 20 to 30 minutes or never fully saturate. Stone walls slow heat-up because they pull energy from the steam. Setting the generator on a timer to start 10 to 15 minutes before you enter is the simplest fix.

What is the best steam generator for a small shower conversion?

For a standard 3x4 or 3x5 tiled shower under 200 cubic feet, a 6 to 9 kW generator is the right range. Mid-range units from Mr. Steam, Steamist, and ThermaSol at that power cost $700 to $2,000 and include digital controls. Buy from a brand with real residential technical support and clear descaling instructions, because maintenance questions show up inside the first year.

Can I install a steam generator myself without a contractor?

Generator placement and steam line routing are within reach for anyone with basic plumbing and framing skills. The 240V circuit is not a good DIY job unless you are a licensed electrician, since wiring near a wet space is a serious hazard. Hire a licensed electrician for the circuit and breaker, a plumber for the water supply and drain, and handle the generator mounting and steam line yourself if you are comfortable.

How often do you need to maintain a home steam generator?

Descaling is the main task: flush the generator with a citric acid solution every 3 to 6 months, more often in hard water areas. Check the water inlet filter yearly. Inspect the steam head for mineral buildup every 6 months and soak it in descaler if output drops. Most generators have a self-clean cycle; run it on the manufacturer's schedule. Total annual maintenance runs under two hours.

What temperature should a home steam room be set to?

Most people find steam rooms most comfortable at 105 to 114 degrees F with 100% humidity. That is well below a dry sauna's 150 to 195 degrees F, but the humidity makes it feel more intense. Start at 100 degrees F for your first few sessions and raise it gradually. The generator controls let you set a target, and the unit cycles on and off to hold it.

How much electricity does a home steam room use per session?

A 9 kW generator running 20 minutes uses 3 kWh. At the U.S. average residential rate of $0.16 per kWh, that is about $0.48 a session, or roughly $14 to $15 a month for daily use. A 13 kW unit for a larger shower costs about $0.69 per 20-minute session. Steam rooms are cheap to run next to a sauna, which often runs 30 to 60 minute sessions at similar wattage.

Do steam rooms cause mold problems in bathrooms?

They can if the enclosure is not sealed and the bathroom is not ventilated afterward. A well-tiled room with a waterproof membrane, a tight door, and an exhaust fan run 20 to 30 minutes after each session almost never grows mold. Trouble starts when there are gaps in the tile membrane, steam leaks into wall cavities, or the fan is too weak for the bathroom's moisture load.

Can a steam room also function as a regular shower?

Yes. A converted shower works fine as a regular shower when the generator is off. The steam head is just one more fixture; the existing showerhead and controls stay in place. Plenty of people use the space as a daily shower and fire up the steam a few times a week. The only practical change is that the door needs to seal tighter than a typical shower door.

Is a steam room better than an infrared sauna for recovery?

Neither has strong head-to-head clinical evidence over the other for recovery specifically. Dry saunas in the traditional Finnish style hold the largest body of cardiovascular research. Infrared saunas produce deeper tissue heat at lower air temperatures. Steam rooms tend to be easier on the sinuses and airways. For post-workout muscle comfort, all three produce similar acute effects through heat and increased circulation.

What kind of door do I need for a shower steam room?

A frameless or semi-frameless glass door with tight compression seals on the sides and a quality bottom sweep is the right choice. Pivot doors seal better than sliders, which leave a center gap. Skip no-door or curtain-only enclosures. The door does not need to be airtight, but it has to hold steam long enough for the room to reach operating temperature, usually 10 to 15 minutes.

Do I need a special steam-rated exhaust fan for the bathroom?

You need a fan sized for your bathroom volume and vented to the exterior. Steam use raises the moisture load a lot, so a fan rated 80 to 110 CFM beats a minimal 50 CFM unit. Put the fan on a separate switch from the steam room so you can run it after sessions without pulling steam during use. Panasonic and Broan both make quiet, high-CFM bath fans that suit this job.

Can you add aromatherapy to a shower steam room?

Yes. Most mid-range and higher generators include an aromatherapy reservoir that injects essential oils into the steam line. You fill a small tank with eucalyptus, lavender, or another steam-safe oil, and the generator meters it into the steam automatically. Never add oils directly to the generator's water reservoir; that damages internal components. Use only oils the generator manufacturer approves for steam.

How does a shower steam room compare to a home sauna?

A steam room runs 100 to 114 degrees F at 100% humidity; a traditional home sauna runs 150 to 195 degrees F at 5 to 20% humidity. Steam rooms are often easier to retrofit into an existing shower because you are adding a generator to an already-waterproofed space. Saunas usually need a separate insulated room or an outdoor structure. Both produce sweating and cardiovascular stress, but they feel very different. Full breakdown at sauna vs steam room.
